Scratchbuilt 1/72 Ryan M-1 in progress

 (The completed model is here:)
http://wingsofintent.blogspot.com/2012/12/scratchbuilt-ryan-m-1-completed.html

The Ryan M-1 and its successor the M-2 were the ground upon which more streamlined and refined later types stood. Lindbergh’s very Ryan NYP was a cousin of this sort of clumsy-looking planes. Many of them worked for incipient airlines and plied the Air Mail air trails, as it is the case with the subject modeled here. There was a version equipped with an HISSO in-line engine, which can be seen today at the Seattle museum. The radial versions had different powerplants, but the Wright J-4 seemed a common choice.
The chubby, stumpy, squarish, fridge-like lines have a unique charm, punctuated by details like the ice-cream cone-like landing lights and the exposed radial engine.
There used to be a kit around for this one that pops up some times on Evilbay, made by Greenbank or Greenbank/Castle. It is a little bit heavy-handed, and scarce, but caters for both the in-line and radial versions, and has decals. The kit is dated 1971, and one may say it is not that bad for that vintage.

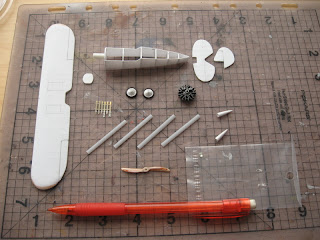

Every build present its challenges, and scratchbuilding more so. If the model is quite simple indeed, the polished swirls on the aluminum cowl and wheels are not easy to render. The nav lights, decals and other details required some attention too. I enthusiastically made a laminated prop that took a time, only to discover that the real prop wasn’t visibly laminated, so another one was carved. The procedure to make the wing nav lights is described in the accompanying images. An interior was also added to spice-up the little boxy winged crate. The fuselage needed to be drilled in more than 20 places to accommodate struts, landing gear, control wires, etc. The visible tubular structure above the cockpits that supports the wing must be dealt with carefully. The plane fortunately is painted aluminum overall, but many areas should be treated with the previously-described burnished aluminum; that includes fuselage nose, upper cockpit area, front of central section of the wing and small square panels that cover the exit points of the wings aileron controls. Horns, cables, handles, nav lights, wires, coaming and the like were added to the exterior to make for a more realistic model.
This replica of the nice little cute lumbering fellow will soon fly to his home hangar in Glen Ellyn to be cared after by David, his new pilot.
As I was building this, Jim from the Pugetian Irregular Dominions (otherwise know as The Boing Santa) sent as a Holidays gift the venerable kit of this same subject. Stay tuned for that build.

See you in the sky
