Amodel 1/72nd Taylor JT-1



The Taylor JT-1 is a cute little British homebuilt touring-sports plane of harmonious lines and graceful proportions. Many still fly today.

Amodel and manufacturers like SBS, KP, Avis, AVIModels, MikroMir, Dekno, Dora Wings and others, are to be congratulated for contributing to, and enriching the hobby scene with attractive kits of civil machines in a variety of types, from sport planes to passenger carriers, to cargo transports to racers, following in the steps of pioneering kit manufacturers of civil planes that belong to what it's called the "cottage industry", like Khee-Kha Art Products, 72Topia, and old names like Williams Brothers and others, that offered and still offer appealing civil subjects for modelers that prefer a peaceful modeling universe to represent, inhabit and share.

I see this as an encouraging sign of a re-emerging modeling field that speaks of glamour, challenge, progress, adventure, tourism, records, and fun.

The last additions on this path that crossed my building board are two minute and cute kits of British homebuilt sport planes, the Taylor JT-1 from the late 50s and the more modern JT-2 Titch from the late 60s. Many still fly today and are a pretty sight at airfields, being small in size but big in charm.

For the step-by-step building post please go here:

https://wingsofintent.blogspot.com/2021/01/taylor-jt-1-and-jt-2-amodel-172nd.html

The JT-1 was built more or less out of the box, using the kit's decals and giving it a few touches like replacing the exhausts and other small parts with fabricated items, and adding the cylinder intakes, an air vent, antenna, fuel gauge, and P.E. horns and control cables. The windshield, too thick, was replaced by a home-made vac part.

Being a British plane, I photographed the model for some of the images in suitable half-gloomy weather!




























Size comparison (same scale) with a Seversky racer:




Tuesday, January 26, 2021

72Topia AVRO 631/643 Cadet/Cadet MKII, 1/72nd resin Wonder Kits



(The completed model can be visited here:

https://wingsofintent.blogspot.com/2021/08/avro-643-cadet-mkii-72topia-resin.html



I just acquired two of the newest releases from this truly talented Argentinian kit manufacturer.

I have previously built his Yakovlev AIR-7 (released under the previous manufacturer's incarnation, Ayacucho Maquetas) and the FMA IAe.20 "Boyero" (72T-001), both on this blog.

It seems that in every new kit Matías Hagen -the sole person behind this fascinating and fantastically cast kits- can go yet another step higher and further on the road to perfection.

Sincerely, there are no words that can praise enough his meticulous work. We are talking here complete cottage industry, but instead of a cottage, a small table in a room, and all under the severe economic limitations imposed by the local policies, which implies extremely restricted and expensive access to imports, and difficulties to deliver and distribute a product.

I see Matías Hagen a little bit as Jorge Luis Borges envisioned the philosopher Spinoza: a man that in solitude, with infinite patience and skillful art, humbly creates wonders.

If one word has to be used to define those wonders, it is "exquisite".

Kits packed in a sturdy cardboard box and padded:
Parts bagged in sensible groups:
Excellent instructions, patterns for the masks, and the home-made inkjet decals that come already clear-coated:
Very comprehensive:

Vacuum-formed windshields, with spares:
Parts pristine and impeccably cast:
Sensible casting blocks that make separation a breeze
All separates cleanly and easily, provided you are careful and patient:

The detail is at the best level seen in the industry, at the very top of it:

Smaller parts come with a thin casting wafer what makes again separation and cleaning easier:
Notice how clever are the casting blocks:
Parts already separated, to be later better cleaned up:

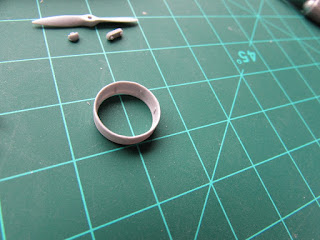

Notice the structure inside the Townend ring:
The exhaust collector:
Parts almost ready:

The kit even provides alignment jigs:
Dry fit of the jig:
Fine, subtle, restrained detail and the location of the struts already there:
The smallest parts are provided on a tape, and of course bagged too:
The level of detail is outstanding:


The slats:


Full cockpit:

Detailed cockpit floor:

Full details:
Two sets of wheels. Notice how well protected are the joysticks:
Most parts already separated from the casting blocks and bagged again for protection:
The second kit instructions and decal sheet. Again, a home-made ink-jet set already clear-coated. The subjects need to be cut individually as this is an all-carrier affair. Instructions provide a code to access the decals' files, in case you would like to print a set yourself:

Stay tuned for the build, there are a few ongoing projects that I want to complete before continuing to build these kits, but hopefully I will be posting more soon.

There is a link on the sidebar to the right to 72Topía's website. Disclosure: I have no financial interest whatsoever or in any way I am compensated; I pay for all I buy from this vendor. My only wish is to help this very small company to be appreciated by fellow modelers, as it is exceptional and deserves the best.

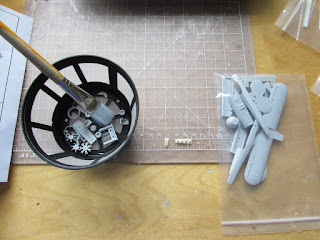

Parts being washed with soapy water, rinsed and let to dry, in batches. First the smaller components, and then the larger ones. DO NOT lose parts, many are really small. If you are careful and proceed slowly, all will be good. I use a very fine mesh coffee filter and a very soft brush, watch out that small bits don't get adhered to the brush of mesh (and therefore missed) when you take them out to dry:


The very practical jig for the biplane wings is assembled. Modelers will be very grateful!:
The rudder bars and control sticks are glued to the cockpit pan:

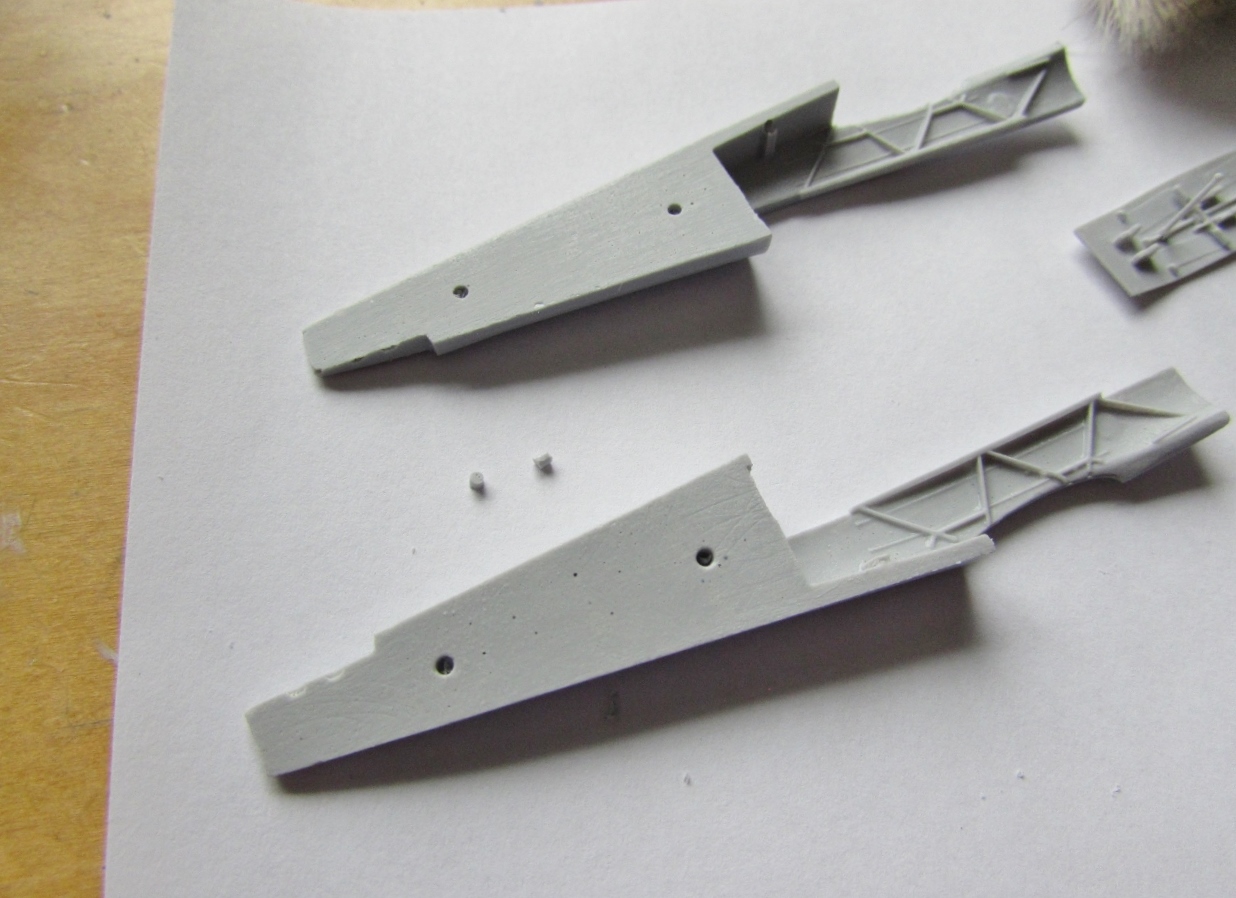

The sides' alignment is secured by two dowels:

The parts that comprise the engine are cleaned:
And prepared for painting:

Nice surface detail:


Only one part, the upper wing, had some pinhole issues on the very edge of the leading edge:
Masking tape both side, very close to the edge, and putty applied and sanded before removing the tape, and after removing the tape to erase the step, solves the problem:

Liquid putty is laid down:

Exquisite detail, again:



The top of the cockpit's edges are masked for painting:
Instrument panels and compasses:

Your get two styles of wheels to chose one, and just two interior hubs:
Spoke or cover, make your choice according to the specific subject you are modeling:
Many elements ready now for the first paint session:

The struts are removed from their casting web. They are very to-scale, thus very thin, therefore do this carefully and take your time cleaning them. Parts marked L/R can be lightly taped to a piece of cardboard labeled so, in order not to lose track. Most have very clever reinforcement wires embedded in the resin, thus conferring the needed strength. One of the N struts has molded a double-pronged Pitot, pay extra attention there during cleanup, but if unwanted mishaps occur, there are commercial P.E. Pitots available:

Painting of many components, each in its color -or base coat in case of the metallic hues- ensues. The clever engineering of the kit helps a lot with this task:

Look at the detail in that minute engine (actually 1 of the 4 components of it):

With the help of some instrument decals the gorgeous inst. panels are dressed up:

The quality of the parts is evident, locations of struts, panel lines, cockpit coaming, even a line that marks the position of the windscreens:
Two longitudinal features on the sides (painted wood here) serve to hold and align in position the top cover, and replicate a ledge present in the real plane:
A bit of oil colors to spruce-up the prop:

The rudder control horn is installed in its slot. Notice the detail and the nav light:

Dry-fitting of all fuselage components goes like a breeze, again stating the quality of the kit:

Second movement of the Airbrushing Suite: the metal color is sprayed over the gloss black, different metallic hues for different parts, and the top wing is coated with primer to check the work on those leading edge pinholes, all looks right:

The very tiny and very sharp oil cooler:

The cockpit floor is ready to receive the seats:

The engine follows. This is a very clever and nicely detailed mini-kit. Notice how the intake manifold will self-center:

Following the instructions regarding what goes where and at what angle and side, all goes ok:
The exhaust ring is now added. Everything fits perfectly:

And presto:

Using aftermarket circular masks the hubs are protected for the airbrushing of the tire color:

What a thing of beauty, modelers will be so grateful for this jig included in the kit:

Just consider the nightmare I had to concoct for my last model (in this case to rig floats and lower wing):

The cockpit floor goes in:

The instrument panels are glued inside the fuselage upper part, there is a ridge to position them:
And as if by magic, top fuselage, then nose and then lower wing go together like a charm. I haven't enjoyed this kind of good fit, simplicity, and sound engineering in a very long time, what a pleasure:

Not bad for a three-day work:

Attention to detail: the carb intake with its mesh filter:

The other side with its locating device:
Small bits associated with the fuel tank:
All being prepared for some primer and paint:

The slats once again show the delicacy and precision of the castings:

Time to clean my Aztek airbrush:
Primer was applied, and the cute little wheels are ready:

Looking at photos of planes (G-ADTU and G-ADTY) from the same batch of 20 planes that went to Air Service Training Ltd. that had slats, I concluded that my chosen reg, G-ADTG, also had them, and therefore added them to the wing. Today I got the 2nd dose of the covid vaccine, and depending on how I feel, I will proceed to airbrush (or not) the black that is the fuselage color and at the same time will be the base for the Alclad aluminium.

Black is airbrushed:

Starting to apply the aluminium color over now:

The masks are removed after spraying the wings and the leather guards are painted, the seats (outside to the right) are dressed:

The two very tiny parts associated with the fuel tank are added in place:
As well as the carb intake. The oil cooler will be added later as it is more exposed and likely to be knocked down:
The stab is added, it is easily positioned with the help of the pegs molded on it. The seats are already glued inside the cockpits. Starting to look smarty-panty:

The upper wing has the pips that represent the nav lights provided as tiny resin parts, but I fabricated tiny lenses for them made of stretched clear sprue rounded at one end and cut off:

And another for the tail light:
So far so good:
Trying the kit's jig, all looks fine (dry run):
The kit provides two full sets of vacuformed windscreens, in case of boo-boos. The shapes are well defined and shouldn't present a problem:

The windscreens are cut. At their base they are slightly scalloped to be able to follow the curvature of the fuselage. I got close with the scissors and then very carefully -and at low speed- finished the curves with a rotary tool. These parts are small, take your time and handle them carefully, avoiding scratching them:

If you can't do this, or used up all the parts and are still unhappy, there is always another path: taking the measures and the shape from the kit's parts, they can be made of thin flat clear sheet. I made a few, just to demonstrate. Always make more than you need, to chose the best:

The frame is out of the jig now:

The struts are to-scale, and therefore must be treated with care and patience in order not to break them:
Wheels on:
Vertical stabilizer is on. Rudder cables and tiny stab struts in position. The kit provides an already drilled exit point for the "cables" on the fuselage as per original:
Rigging in process:
Engine on:
More rigging:
Adding the rigging that joins both ailerons:
Prop on and home-made nav lights were added, as well as two after-market Venturi on each side of the fuselage as per photos:
Ready for the decals:

The fact that you get locating devices or sockets for all components makes for an easy assembly and a very welcome departure form the carelessness of many manufacturers that do not provide them, passing the buck the modeler with the all-too-sad and ubiquitous butt-joints.

As the kit provides home-made, varnished ink-jet decals, and I wanted a different registration, a custom set was commissioned from Arctic Decals. You may notice (my mistake) that the last two registrations letters are transposed (it should be "TG"), easily corrected changing their order, same for the white regs on the fuselage. Another mistake I made: the vertical tail is black, not silver, so before applying the decals I have to paint it:


Vertical stabilizer painted and decals' application begins:





To be continued....
